hands-on_Exercise 5: Modelling, Visualising and Analysing Network Data

# Install required packages (run only once)
# install.packages(c("tidyverse", "lubridate", "igraph", "tidygraph", "ggraph", "visNetwork", "ggforce", "concaveman"))

# Load libraries
library(tidyverse)
library(lubridate)
library(igraph)
library(tidygraph)
library(ggraph)
library(visNetwork)
library(ggforce)
library(concaveman)

Step 1: Load the Data

# Read nodes and edges data
edges <- read_csv("/Users/sharon/OneDrive - Singapore Management University/isss608data/hands-on_exercise5/GAStech_email_edge.csv")
Rows: 9063 Columns: 6
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr  (5): source, target, SentDate, Subject, MainSubject
time (1): SentTime

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
nodes <- read_csv("/Users/sharon/OneDrive - Singapore Management University/isss608data/hands-on_exercise5/GAStech_email_node.csv")
Rows: 54 Columns: 4
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (3): label, Department, Title
dbl (1): id

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
# Preview the data
glimpse(edges)
Rows: 9,063
Columns: 6
$ source      <chr> "Sven.Flecha", "Sven.Flecha", "Kanon.Herrero", "Kanon.Herr…
$ target      <chr> "Isak.Baza", "Lucas.Alcazar", "Felix.Resumir", "Hideki.Coc…
$ SentDate    <chr> "6/1/2014", "6/1/2014", "6/1/2014", "6/1/2014", "6/1/2014"…
$ SentTime    <time> 08:39:00, 08:39:00, 08:58:00, 08:58:00, 08:58:00, 08:58:0…
$ Subject     <chr> "GT-SeismicProcessorPro Bug Report", "GT-SeismicProcessorP…
$ MainSubject <chr> "Work related", "Work related", "Work related", "Work rela…
glimpse(nodes)
Rows: 54
Columns: 4
$ id         <dbl> 1, 2, 3, 4, 5, 6, 7, 44, 45, 46, 8, 9, 10, 11, 12, 13, 14, …
$ label      <chr> "Mat.Bramar", "Anda.Ribera", "Rachel.Pantanal", "Linda.Lago…
$ Department <chr> "Administration", "Administration", "Administration", "Admi…
$ Title      <chr> "Assistant to CEO", "Assistant to CFO", "Assistant to CIO",…

Step 2: Wrangle Dates

# Convert SentDate and extract weekday
edges <- edges %>%
  mutate(SendDate = dmy(SentDate),
         Weekday = wday(SendDate, label = TRUE, abbr = FALSE))

Step 3: Aggregate Edges

edges_aggregated <- edges %>%
  group_by(source, target, Weekday) %>%
  summarise(Weight = n(), .groups = "drop")

Step 4: Clean and Validate Data

# Remove rows with NA
edges_aggregated <- edges_aggregated %>%
  filter(!is.na(source), !is.na(target), !is.na(Weekday), !is.na(Weight))

nodes <- nodes %>%
  filter(!is.na(id))

# Ensure edge IDs match nodes
valid_ids <- nodes$id
edges_aggregated <- edges_aggregated %>%
  filter(source %in% valid_ids, target %in% valid_ids)

Step 5: Create Network Graph Object

GAStech_graph <- tbl_graph(nodes = nodes, edges = edges_aggregated, directed = TRUE)

# Display basic info
GAStech_graph
# A tbl_graph: 54 nodes and 0 edges
#
# A rooted forest with 54 trees
#
# Node Data: 54 × 4 (active)
      id label               Department     Title
   <dbl> <chr>               <chr>          <chr>
 1     1 Mat.Bramar          Administration Assistant to CEO
 2     2 Anda.Ribera         Administration Assistant to CFO
 3     3 Rachel.Pantanal     Administration Assistant to CIO
 4     4 Linda.Lagos         Administration Assistant to COO
 5     5 Ruscella.Mies.Haber Administration Assistant to Engineering Group Mana…
 6     6 Carla.Forluniau     Administration Assistant to IT Group Manager
 7     7 Cornelia.Lais       Administration Assistant to Security Group Manager
 8    44 Kanon.Herrero       Security       Badging Office
 9    45 Varja.Lagos         Security       Badging Office
10    46 Stenig.Fusil        Security       Building Control
# ℹ 44 more rows
#
# Edge Data: 0 × 4
# ℹ 4 variables: from <int>, to <int>, Weekday <ord>, Weight <int>

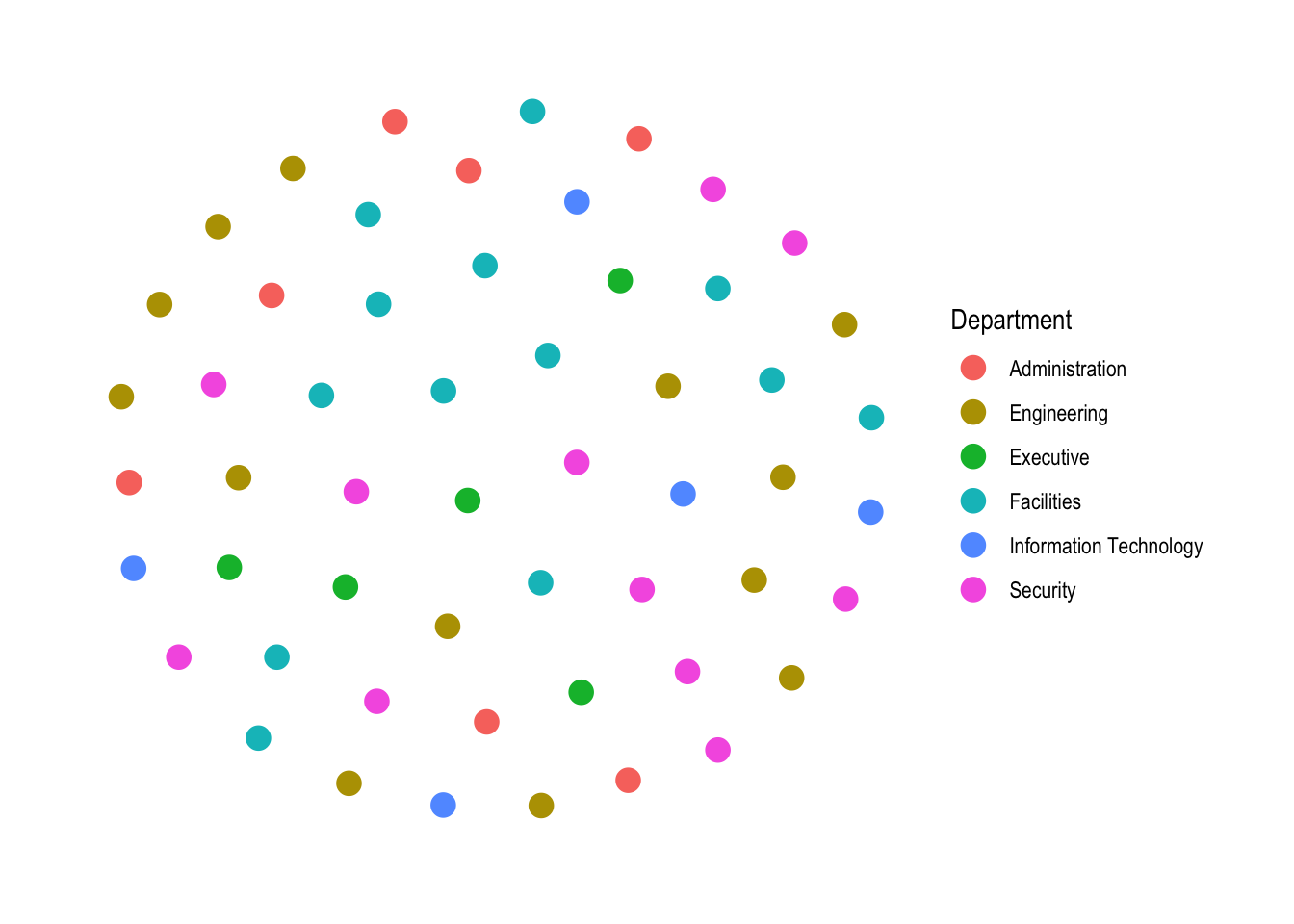

Step 6: Static Network Plot (Fruchterman-Reingold Layout)

ggraph(GAStech_graph, layout = "fr") +
  geom_edge_link(aes(width = Weight), alpha = 0.6) +
  geom_node_point(aes(color = Department), size = 4) +
  theme_graph()

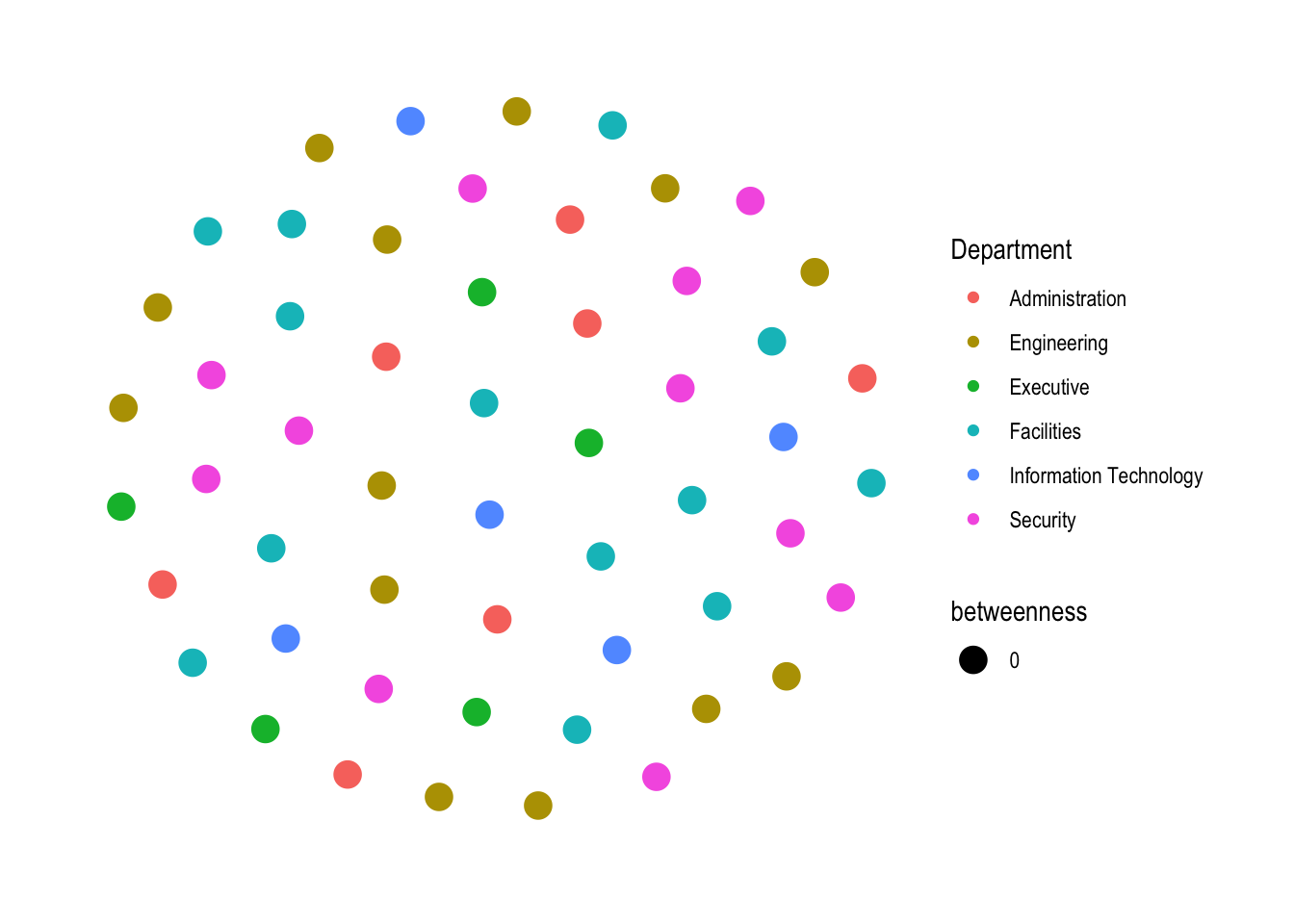

Step 7: Compute Betweenness Centrality

GAStech_graph <- GAStech_graph %>%
  mutate(betweenness = centrality_betweenness())

Step 8: Visualise Centrality

ggraph(GAStech_graph, layout = "fr") +
  geom_edge_link(alpha = 0.2) +
  geom_node_point(aes(size = betweenness, color = Department)) +
  theme_graph()

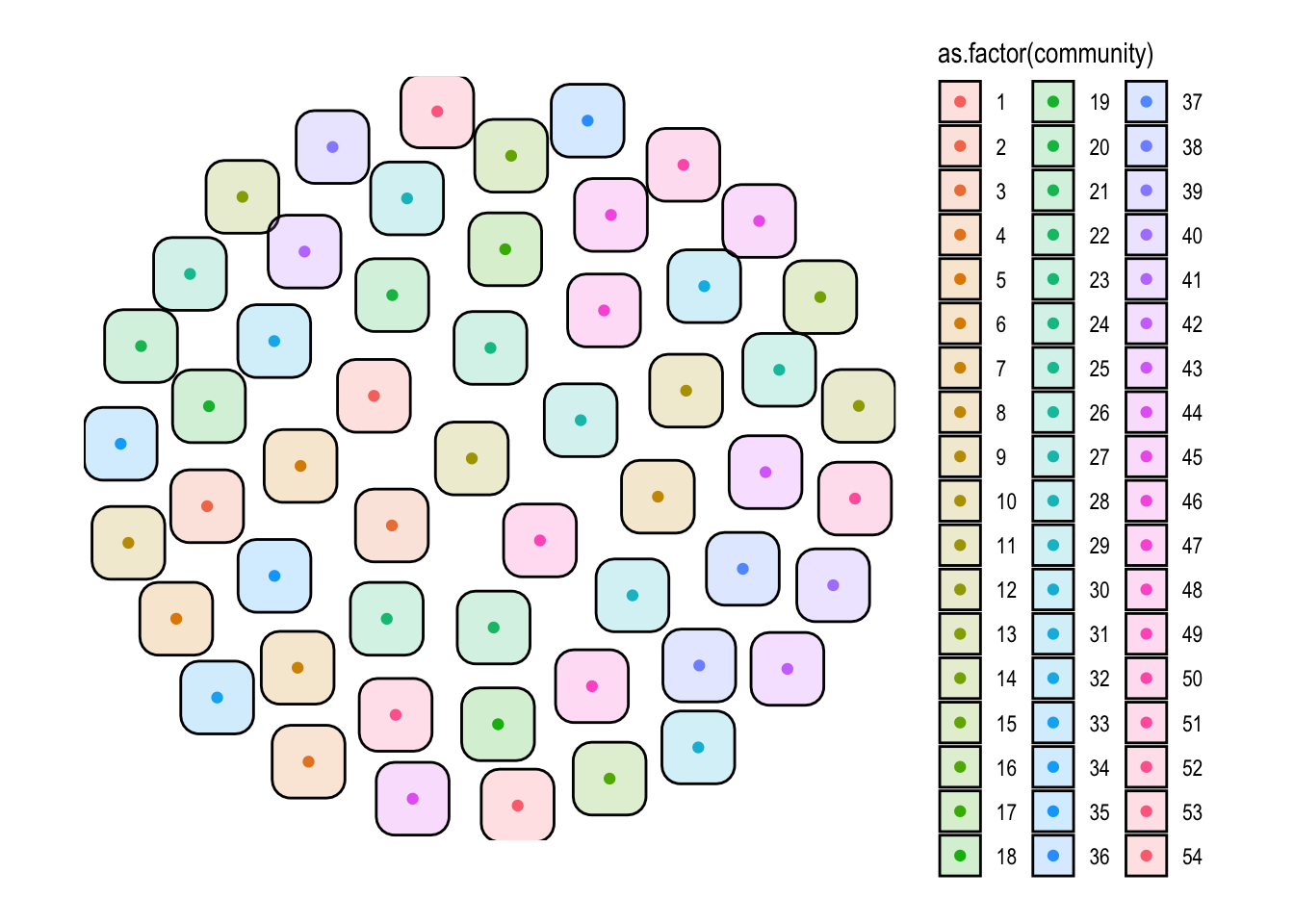

Step 9: Community Detection and Visualisation with Hulls

GAStech_graph <- GAStech_graph %>%
  mutate(community = group_edge_betweenness())

layout <- create_layout(GAStech_graph, layout = "fr")

ggraph(layout) +
  geom_edge_link(alpha = 0.2) +
  geom_node_point(aes(color = as.factor(community))) +
  geom_mark_hull(
    aes(x = x, y = y, group = community, fill = as.factor(community), label = community),
    concavity = 5, alpha = 0.2
  ) +
  theme_graph()

Step 10: Prepare for Interactive Graph

nodes_vis <- nodes %>%
  rename(id = id, label = label, group = Department)

edges_vis <- edges_aggregated %>%
  rename(from = source, to = target)

Step 11: Interactive Network Graph with visNetwork

visNetwork(nodes_vis, edges_vis) %>%
  visIgraphLayout(layout = "layout_with_fr") %>%
  visEdges(arrows = "to", smooth = TRUE) %>%
  visOptions(highlightNearest = TRUE, nodesIdSelection = TRUE)
